North - South UHF Technical Repeater Specifications

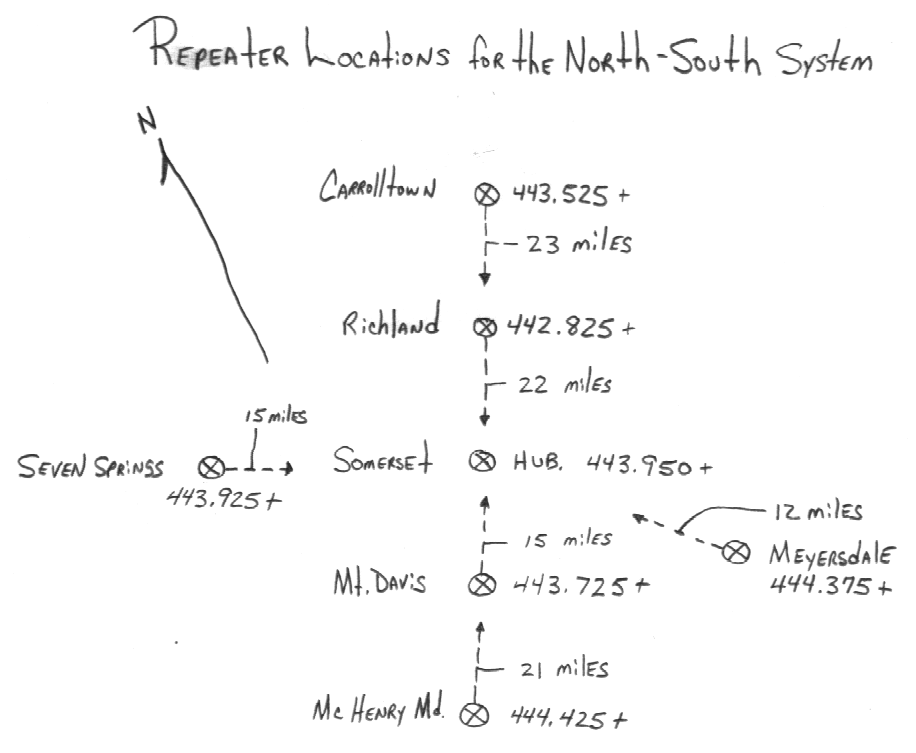

Click for location layout

443.950+ N3VFG System Hub Repeater (PL 88.5)
2600' Elevation

This repeater is a Kendecom, Micro Control Specialties (MCS) KRP-5000
Output power 10 Watts.
Receiver Sensitivity <.22 uV. for 12 db SINAD.
Duplexers Wacom BpBr 4 Can Model WP-678.
Duplex Antenna @ 100', 9 dB cardioid, side mounted, main pattern west.
Located at Somerset PA. @ 2517' ground elevation amsl.
MCC RC-1000V repeater controller. V4.65
Feedline is 125' of CommScope .860 CATV Hardline. (75 ohm with matching stubs)
Center of antenna @ 2617' amsl.

443.925+ KB9WCX Seven Springs PA. (PL 123.0)
3100' Elevation

This repeater is a Motorola Micor Basestation, converted to repeater station.
Output power 100 Watts.
Receiver Sensitivity <.125 uV. for 12 db SINAD.
Duplexers Motorola BpBr 4 Can Model T 1504A
Duplex Antenna @ 111', 9.0 dB omni top mounted. (homemade colinear with 3° downtilt)
MCC RC-100 repeater controller.
Site elevation 2984' amsl.
Feedline is 115' of CommScope .860 CATV Hardline. (75 ohm with matching stubs)
Center of antenna @ 3095' amsl.

442.825+ KB3BLF Johnstown (Richland) PA. (PL 110.9)
2500' Elevation

This repeater is a Motorola Micor Repeater station.
Output power 68 Watts.
Receiver Sensitivity <.20 uV. for 12 db SINAD.
Duplexers Celwave BpBr 6 Can Set.
Duplex Antenna @ 160', 6.1 dB omni, side mounted.
MCC RC-100 repeater controller, V3.65
Site elevation 2350' amsl.
Hardline is 190' of LDF 5-50 Andrew 7/8 heliax.
Center of antenna @ 2510' amsl.

443.725+ WA3P Mount Davis PA. (PL 103.5)
3300' Elevation

This repeater is a Motorola Micor Basestation, converted to repeater station.
This is the highest amateur repeater in the State of Pennsylvania.
Output power 75 Watts.
Receiver Sensitivity <.125 uV. for 12 db SINAD.
Duplexers Wacom BpBr 4 Can Model 678.
Duplex antenna @ 120', 6 dB omni side mounted. (Hustler G6-440)
MCC RC-100 repeater controller, V 2.5
Site elevation ~ 3170' amsl.
Center of antenna @ ~ 3290' amsl.

444.375+ WA3KOK Hays Mill PA. (PL 123.0)
3000' Elevation

This repeater is a Motorola Micor Basestation, converted to repeater station.
Output power 100 Watts.
Receiver Sensitivity <.125 uV. for 12 db SINAD.
Duplexers Motorola BpBr 4 Can Model T 1504A
Duplex antenna @ 85', 9 dB omni top mounted. (Hustler Spirit)
MCC RC-100 repeater controller, V 4.05
Site elevation 2920' amsl.
Center of antenna @ 3005' amsl.

443.525+ KB3BLF Carrolltown PA (PL 107.2)
2425' Elevation

This repeater is a Motorola Micor Repeater station.
Output power 60 Watts.
Receiver Sensitivity <.20 uV. for 12 db SINAD.
Duplexers Motorola BpBr 4 Can Model TLN 1504A
Duplex Antenna @ 75', 9 dB omni, side mounted. (Hustler Spirit)
MCC RC-100 repeater controller, V2.0
Site elevation 2350' amsl.
Center of antenna @ 2425' amsl.

444.425+ Mc. Henry Md. is no longer is service in this system.

443.575+ KE3UC Repeater (PL 123.0)
2900' Elevation STAND ALONE

This repeater is a Kendecom, Micro Control Specialties (MCS) KRP-5000
Mirage UHF Power Amplifier
Output power 100 Watts.
Receiver Sensitivity <.22 uV. for 12 db SINAD.
Duplexers Wacom 4 Can Model WP-678.
Duplex Antenna @ 160', 6 dB Hustler G6-440, side mounted, main pattern east.
Located at Statler Hill (Central City). @ 2720' ground elevation amsl.
NHRC-4 repeater controller.
Feedline is 200' of CommScope .860 CATV Hardline. (75 ohm with matching stubs)
Center of antenna @ 2885' amsl.

443.250+ K3SMT Somerset PA. (PL 123.0)
2600' Elevation STAND ALONE

This repeater is a Motorola Micor Mobile converted to Repeater station.
Output power 40 Watts.
Receiver Sensitivity <.125 uV. for 12 db SINAD.
Duplexers Motorola BpBr 4 can T 1504A.
Duplex Antenna @ 55', 6.0 dB homemade omni, side mounted.
FF-800 Repeater Controller
Site elevation 2550' amsl.
Hardline is 55' of LDF 5-50 Andrew 7/8 heliax.
Center of antenna @ 2605' amsl.

This page last modified on July 10 2002 at 3:36 pm by:

Kevin Custer W3KKC
